SWR METER CHART.

Place to come if youre having technical issues, including mic wiring
Post Reply
User avatar
Smithdoor
Good Buddy
Good Buddy
Posts: 45
Joined: Sun Apr 19, 2026 2:40 am
CB Handle: KDS93612
Location: Clovis California
Contact:
Contact Smithdoor

[FONT=Times New Roman]

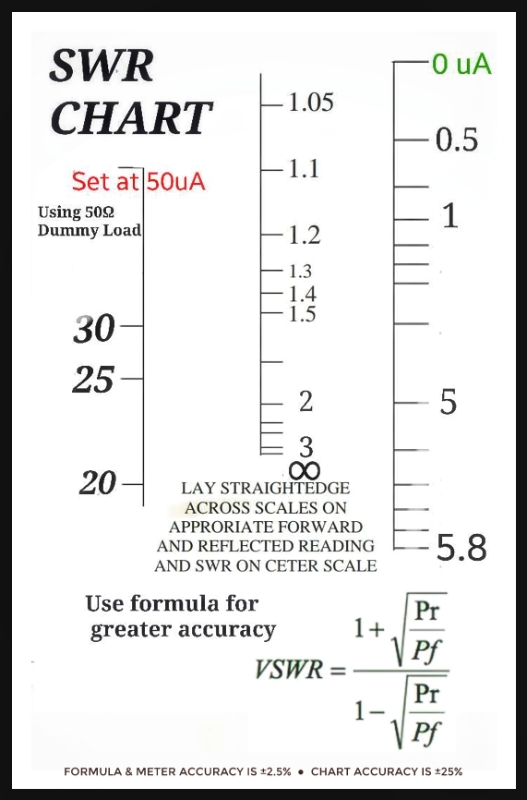

Here is a SWRCchart using a 50 uA meter
For anyone build a meter.
SWR chart_edited.jpeg
SWR chart_edited.jpeg (128.77 KiB) Viewed 15973 times

Dave
Last edited by Smithdoor on Mon Apr 27, 2026 5:47 am, edited 2 times in total.
Top
User avatar
Smithdoor
Good Buddy
Good Buddy
Posts: 45
Joined: Sun Apr 19, 2026 2:40 am
CB Handle: KDS93612
Location: Clovis California
Contact:
Contact Smithdoor

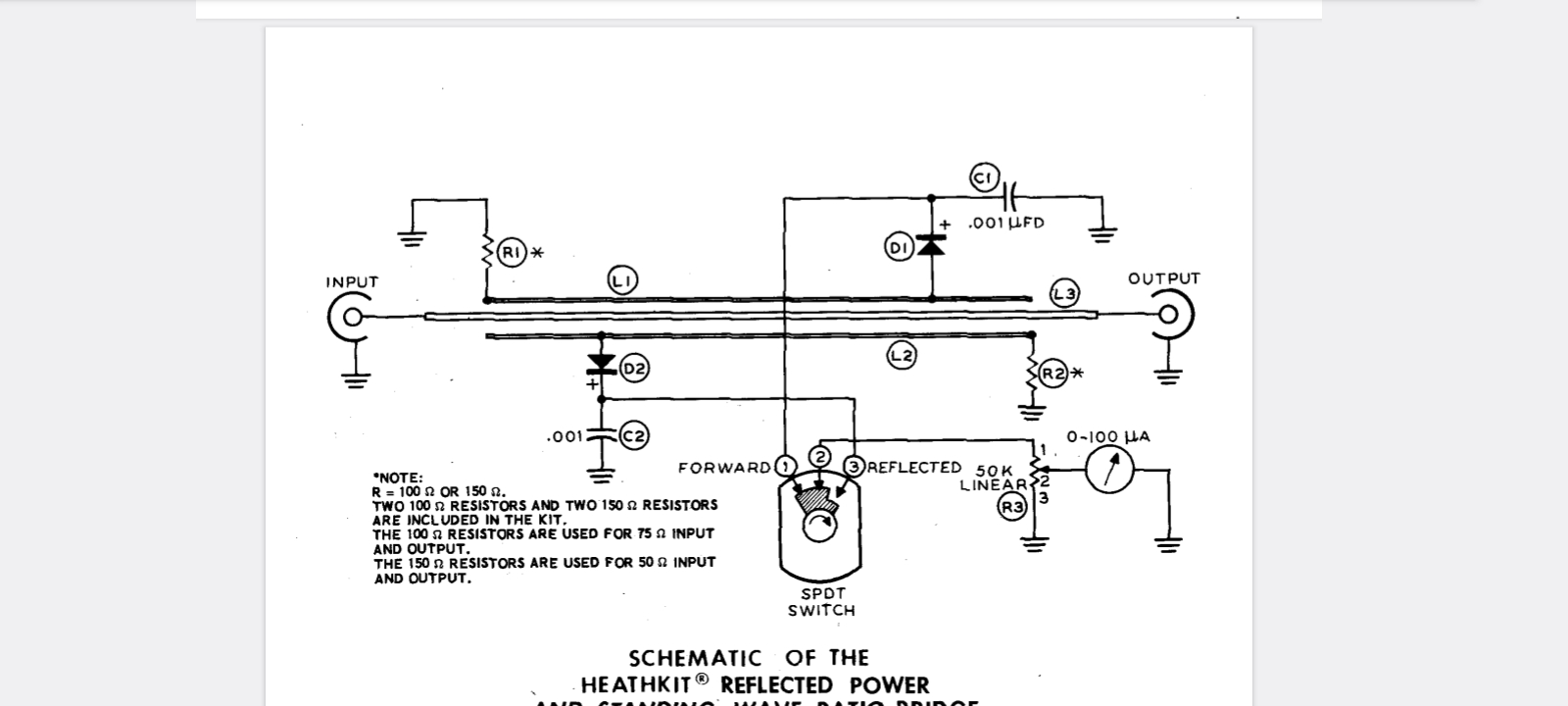

Here is 2 schematics on SWR Meters.
1) Standard Wave Ratio meter (1).jpeg
1) Standard Wave Ratio meter (1).jpeg (181.43 KiB) Viewed 16001 times
Dave
